If I learned one thing at NANOG 96, it’s how to build an up-to-date state of the art AI data centre! As I now understand it, the process is quite simple.
Take everything that is at the raw bleeding edge of today’s technology: A collection of 60,000 advanced GPUs using 3nm silicon fabrication processes, 3D-stacked high bandwidth memory. You’ll need massive amounts of power, capable of delivering some 150kW to 200kW per equipment rack, and a local power system capable of sustaining up to 100MW of total power for the entire centre. Equip every rack with a liquid cooling system, and provision each rack with power bus bars. Then, mesh-connect the GPUs to both each other and high speed storage in a lossless connectivity mesh using 800G optics and high density switches.
Obviously, all this is not cheap, so you’re going to need substantial financial backing. You’ll need a massive number of local community approvals, particularly if you want to be so bold as to try and use modular nuclear generators for power! And once you’ve done all that, then be prepared to build an even bigger one in 18 month’s time, as most of the centre’s parameters will have doubled!
This is insane!
The computing industry has gone through major shifts from the monolithic shared mainframe computer to the widely distributed personal computers and then further in the direction of ubiquitous device-based mobile computing. Now, the technology pendulum is swinging the other way to spend eye-watering sums of capital to build these monolithic AI data centres. If each data centre ends up consuming the electric power budget an entire economy, then I guess we are not going to end up with that many of them. The race to position product into these centres is well and truly up and running in this industry! The only question left for me is, have we reached peak ‘AIphoria’, or is there even more rabid madness to come?
The common folklore about this wave of activity, is that the risk of under-investing is significantly greater than the risk of over-investing. That the very worst all that would result is that the industry has pre-built sufficient data centre capacity for the next three to five years. We are pouring money into AI at a rate that is quickly approaching trillions of dollars per year.
Such sums of capital are not generated out of thin air, and at this point many other topics in the world of digital communications and networked services are taking a back seat. Security, privacy, resilience and service efficiency are still important topics in this realm, but in industry forums such as NANOG, their collective consideration has largely been deferred to AI infrastructure topics, at least for this most recent NANOG meeting.
There is a substantial level of technology detail in this AI topic, as these facilities appear to be pushing the boundaries in every way. This is a case of assembling a swarm of GPUs, providing a front-end processing capability, and mesh-connecting them to this collection of back-end GPUs. Of course, we are not talking just one or two GPUs.
Current leading examples of large-scale data centres, such as XAI’s Colossus utilize somewhere between 200,000 to 555,000 GPUs in single-site installations. If you use 72 GPUs per track that’s a centre with between 3,000 to 8,000 racks. At 120kW of power per rack that’s a grand total of up to a gigawatt for such a centre. By comparison, the entire city of London is estimated to have a peak demand of 6GW. OpenAI’s Stargate in Texas, xAI’s Colossus in Tennessee, Meta’s Hyperion in Louisiana and AWS’ Project Ranier in Indiana are all examples of this next generation gigawatt-powered facility.
It’s not only power requirements. From the data centre’s perspective, there is a need to provision these data centre processing hubs with unprecedented levels of demand for cooling and transmission capacity as well as power.
Cooling can no longer rely on air movement to shed the heat generated within an equipment rack. Liquid cooling can dissipate heat up to 3,000 times more efficiently than airflow. With liquid cooling, at the very least, it’s necessary to use liquid-cooled cold plates heat-bonded to the GPU chip to pull heat from these processing units and dispatch this heat in the form of heated liquid to the facility’s cooling system.
More extreme approaches involve the immersion of the processing units in a dielectric liquid (non-conductive oil). With platforms like NVIDIA’s Grace-Blackwell GB200 NVL72 requiring up to 140kW of cooling per rack, large-scale liquid tub cooling is emerging as the only approach to support very large data centres constructed from such components.
Communications is also a demanding component of this effort. This is not a replication of current conventional data centre architectures where a collection of servers with local processing, memory and storage are interconnected to each other over an internal centre switching fabric and communicate externally to clients and remote servers. The GPUs in the AI data centre are using the internal centre switching fabric to access memory as well as other processors.
In many respects, this communication network is the data centre analogy of the shared backplane of the old mainframe architectures. This imposes its own additional set of constraints. The communications protocol here is Remote Direct Memory Access (RDMA) over Ethernet using UDP (taken together, RoCEv2). The most critical constraint is that all such communications need to be lossless, which is a high bar challenge when using a UDP transport that has no intrinsic loss detection and repair. A popular technology choice appears to be UltraEthernet (UEC). UEC is conventional Ethernet with a two-level prioritization system (priority flow control) and a form of probabilistic Explicit Congestion Notification (ECN) intended to throttle senders at the early onset of queue build-up within the switch to avoid packet loss.

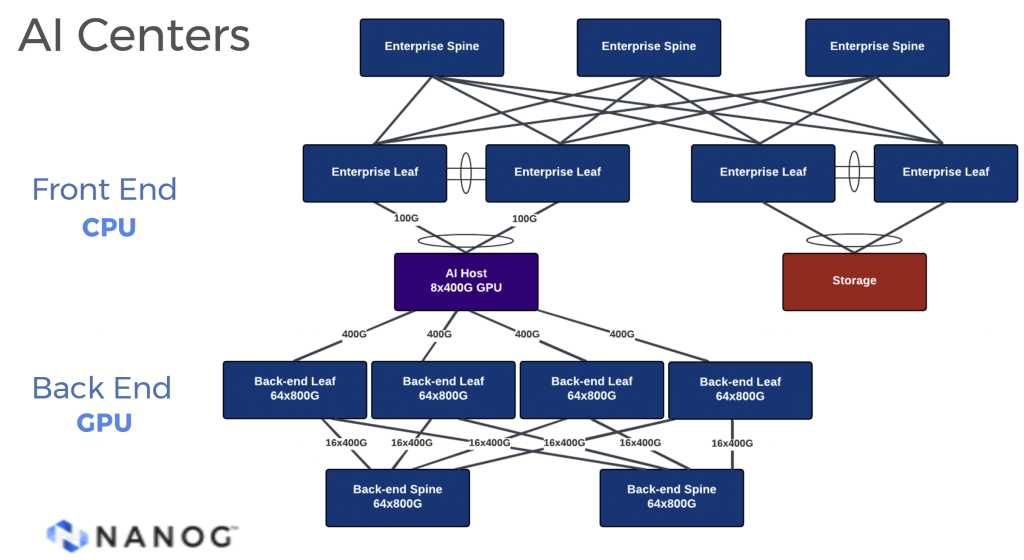

The internal communications environment in these AI data centres use a two-dimensional framework. A ‘North/South’ network provides the external interface, typically implemented as a 2 x 400Gbps switched system, and an ‘East/West’ network for data exchange between GPUs, typically implemented as an InfiniBand or UEC Ethernet at 8 x 800Gbps.
The industry is on a lavishly funded euphoric path to ‘build it!’, without knowing what limits to build to, what the service model might be, how the bills are to be paid, or clear idea of what ‘it’ might be! This rush is fuelled by the ‘winner take all’ business model paradigm of the of the technology sector, coupled with a fear of missing out, and some perception of an ill-defined threat to existing business models. In many ways, it appears that whoever ‘wins’ in all this is not necessarily first past the post, but whoever manages to outspend all the others! With the total construction bill now at an estimated USD 580B by the end of 2025, with much more to come soon, this now has all the features of a euphoric market bubble. Like all bubbles in the past, the next topic is when will this bubble burst, how much damage will be done, and for how long.
Slides:
- Beyond the Chip: The Unprecedented Infrastructure Demands of AI and HPC, Christopher Stewart, Ahead, Bill Conrades, and Michael Balasko
- From Datacenter to AI Center, building the networks that build AI, Tyler Conrad, Arista
- AI Data Center Networking: Lessons from Meta’s Evolution, Omar Baldonado, Meta
Onto other topics that were also presented at NANOG 96 …
Netflix’s BGP
It perhaps goes without saying, but obviously Netflix is a major player in the content streaming sector at a global level. They deliver traffic to end users with an aggregate capacity of terabits per second, operating 19,000 Netflix Open Connect service appliances installed in Internet Exchange Providers (IXPs) and various Internet Service Provider (ISP) networks, across 175 economies. They operate 400 Points of Presence (PoPs), and in the routing system they manage 20,000 eBGP sessions, peering with more than 2,000 different Autonomous System Numbers (ASNs).
Their IP address holdings are relatively modest, as compared to the size and scope of their network. They announce 228,864 IPv4 addresses from AS 2906 in 213 distinct advertisements, and slightly less than a /30 in IPv6 across 237 prefix advertisements. They use a smaller ancillary network to connect their Open Connect appliances back into the Netflix core network.
It’s a conventional BGP network, with edge switches, aggregation routers and provider edges, and they run a full iBGP mesh between edge switches and provider edges.
Full meshed connectivity does not scale well. N-squared is fine for four or five network elements, but by the time you get to a thousand, it becomes a nightmare. For this reason, back in the very early days of BGP in 1996, the IETF published RFC 1996 (‘BGP Route Reflection — An alternative to full mesh IBGP’). The concept is relatively simple: Each active BGP speaker connects to one or more BGP route reflectors, and passes the reflector all of its updates as if it were a normal iBGP connection. When the route reflector receives an update, it passes it to all other iBGP-connected BGP speakers.

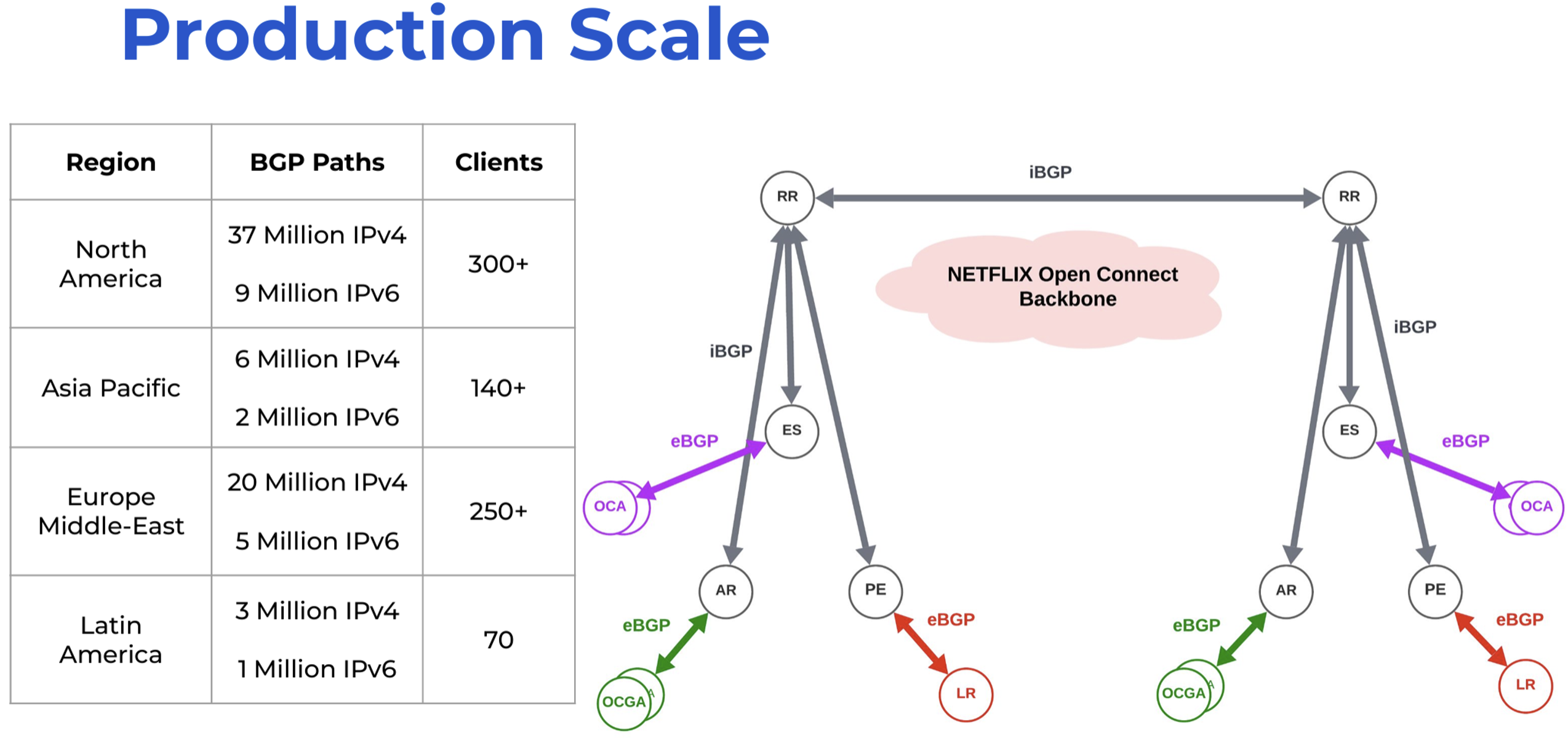

This Netflix presentation described the shift from a full-mesh iBGP environment to a route reflector approach. Netflix chose a design using regional route reflectors for their BGP-speaking elements, and cross-connecting these route reflectors.
Frankly, it’s hard to discern what, if anything, is novel in this story. The Netflix BGP network was suffering from growth pains due to the multiplicative pressures from operating a full internal mesh, and the logical answer was to migrate from full mesh iBGP to route reflectors. I guess the only question I have is: “What took you so long?”
Slides: Redefining Netflix BGP architecture, Fred Cuiller, Cisco and Elise Vennegues, Netflix
Decentralizing Software Defined Networking (SDN)
The Internet has relied on dynamic routing protocols since its inception. These protocols were firstly self-learning, dynamically discovering the topology of the network and making sequences of forwarding decisions to deliver packets to their destination without external direction. Secondly, they were self-healing, dynamically discovering when events disrupt that topology and automatically repairing the topology to the extent that it’s feasible.
When I listen to a presentation about catastrophic failures in large scale routed systems, I can’t help but wonder: What went wrong in the evolutionary process of routing systems that has resulted in a routing system that cannot reliably self-repair? Another way of looking at this is to wonder why routing systems regularly suffer catastrophic outages even though the larger system’s design objectives for resilient dynamic routing are intended to render such scenarios infeasible.
If I correctly interpret this presentation, it is asserted that the shift to Software Defined Networking (SDN) gave network operators the benefit of operator-defined code to override the outcomes of a conventional distributed routing protocol, directed traffic engineering, and the simplicity of what is curiously termed ‘consensus-free’ path selection. As far as I can see, there is an implicit assertion that path state forwarding in a network is somehow superior to a self-learning system. The issue with imposing path state in a hop-by-hop forwarding system is that it’s trusting in the future. When a controller makes a decision to include a router in its precomputed path, it’s trusting that the local network state for that router remains constant. This is not exactly an approach that builds resilience.

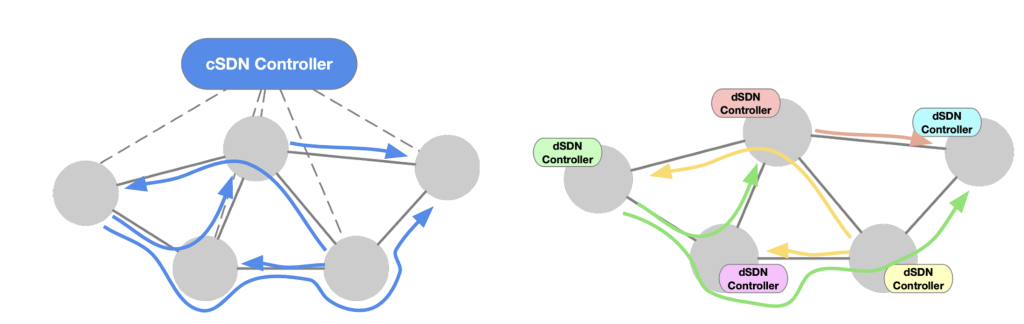

A centralized SDN model has all network elements reporting their local link states to a controller, that then uses a combination of spanning tree protocol (STP) and network-wide constraints to generate a set of paths. The controller then communicates these path states back to the network elements. The decentralized SDN model proposed in this presentation performs the controller’s path computation in code in each router.
I must admit that I find it hard to understand how this decreases the essential operational fragility of path state forwarding. I suspect that the opposite is a likelier outcome.
IPv4 address movements
Following the effective depletion of the unallocated address pools held by the Regional Internet Registries (RIRs), various regional address policy forums have decided to permit address trading, particularly for IPv4 address prefixes. This is a tacit admission that the only remaining way for addresses to be shifted to the parts of the network where there is still need was to use market-based address transfers. That’s what the Internet industry has been doing for the past decade or so.
Doug Madory reported on his efforts to track the movement of IPv4 addresses that were held by ISPs in the Ukraine since 2022. The presentation noted that large amounts of IPv4 space, formerly originated by prominent Ukrainian network providers, have migrated out of the economy, resulting in a 20% reduction in Ukraine’s footprint in the global routing table.

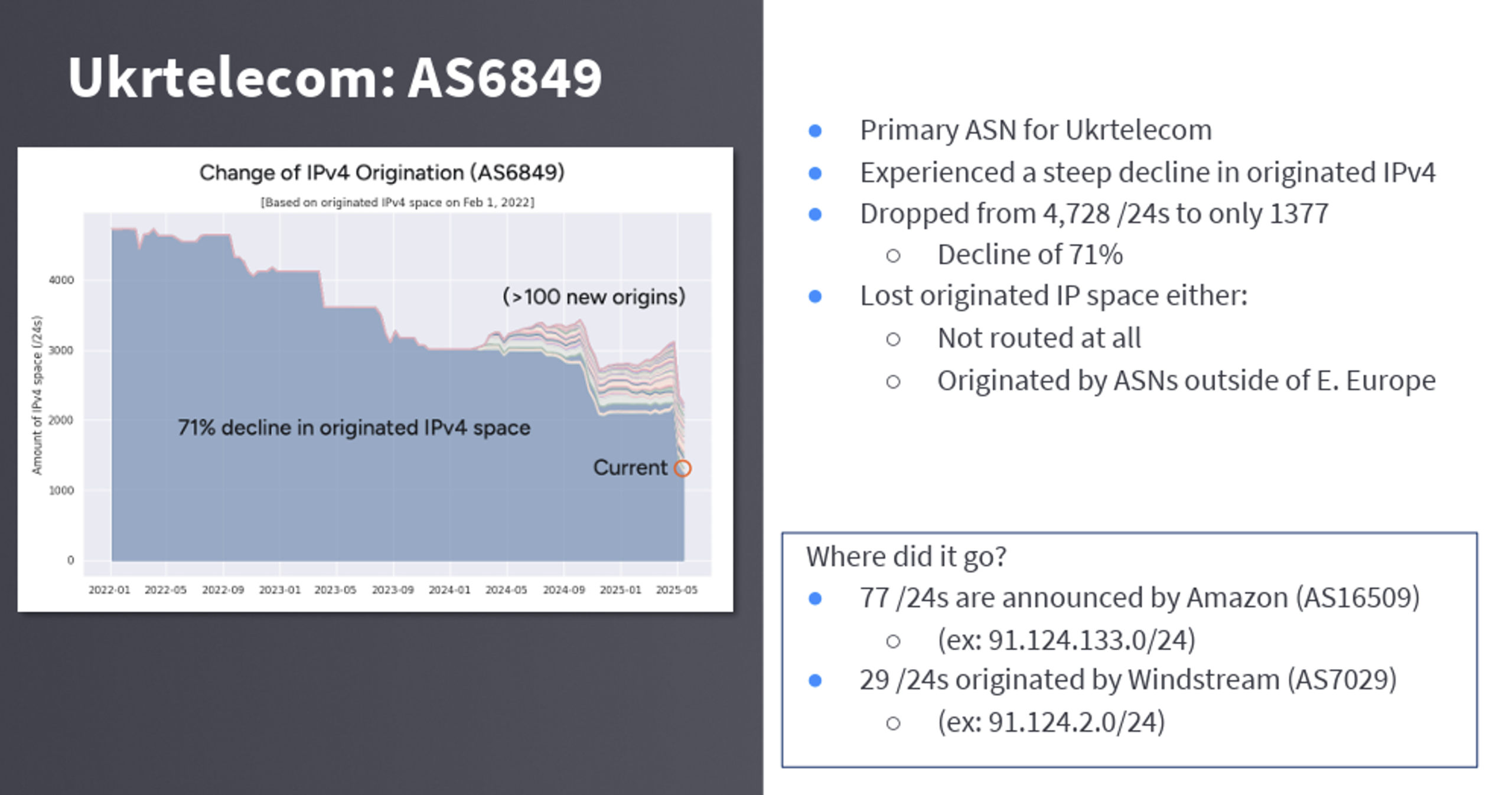

It’s an interesting piece of research and the presentation used a good visualization technique (Figure 4).
This work also highlights an important aspect of registry data management: It’s not only important to have a comprehensive and accurate current picture of the current disposition of IP addresses today. It’s also important to maintain a log of the changes in the past that have contributed to the current picture.
Slides: Exodus of IPv4 from War-torn Ukraine, Doug Madory, Kentik
RPKI adoption
The effort to augment the Internet’s inter-domain routing system with cryptographic credentials has accumulated a rich history over the past three and a half decades. This extended period is a testament to the difficulty of enabling routing systems to validate the authenticity of routing protocol updates, and the rich set of constraints within which the system must operate.
We’ve arrived at a three-part system, that comprises:
- Generating cryptographically-signed credentials.
- Flooding these credentials to all BGP speakers.
- Applying these credentials to locally held BGP data.
These three components are interdependent, so it is just a partial picture of the situation when you look at just one part to the exclusion of the others.
Which is the case with the NANOG 96 presentation on ‘Removing Barriers to RPKI Adoption’. The current situation at the start of 2026 has a little over one half of the advertised address space described by Route Origination Authorizations (ROAs).
It’s straightforward to examine a BGP routing table, extract the address prefix origination information, and propose ROAs that match what is visible in the routing system. This appears to be the motivation behind the R U RPKI Ready tool.
But, there is more to securing routing than ROA generation. These cryptographic credentials need to be published in a manner that is readily accessible by all RPKI clients, and this data needs to be applied to BGP routing information in the client’s BGP routers. We need all three elements of this framework for RPKI to work.

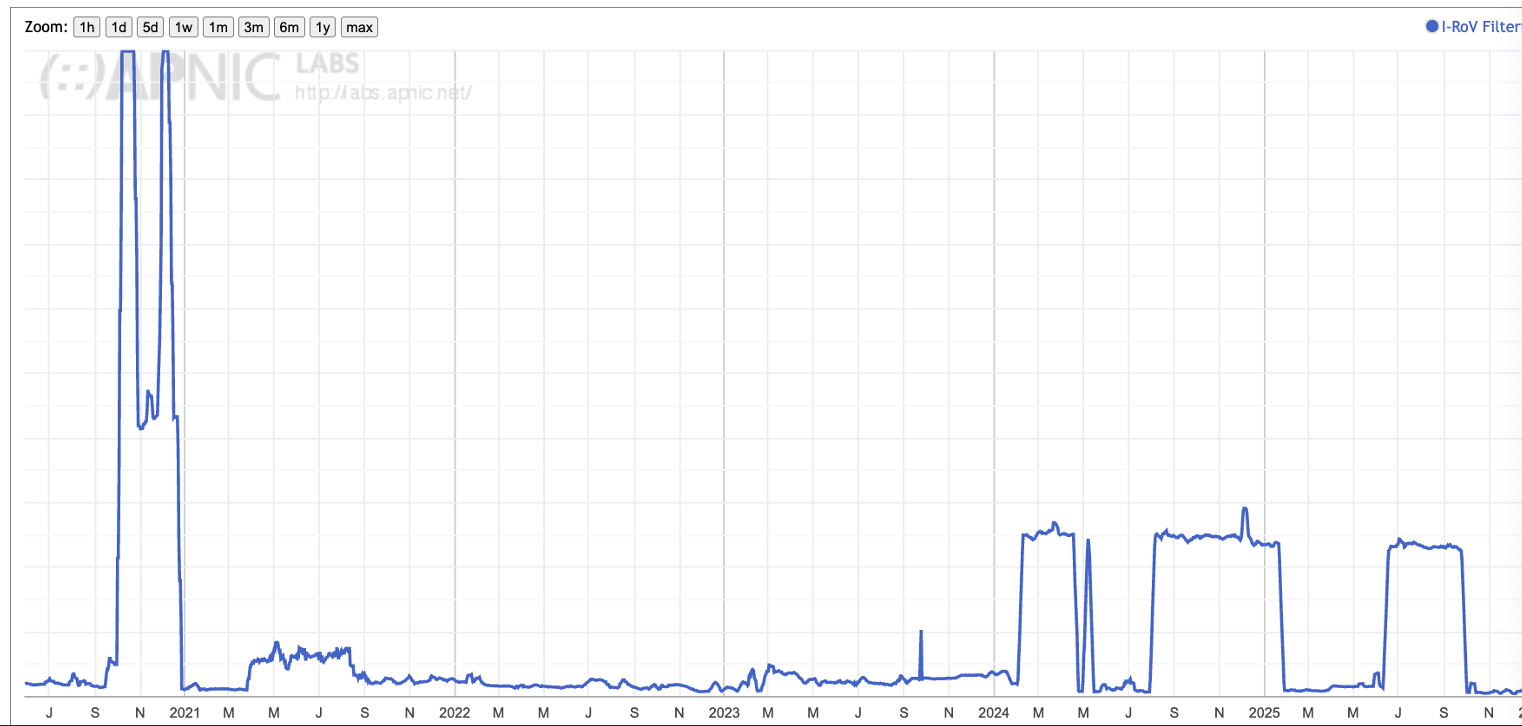

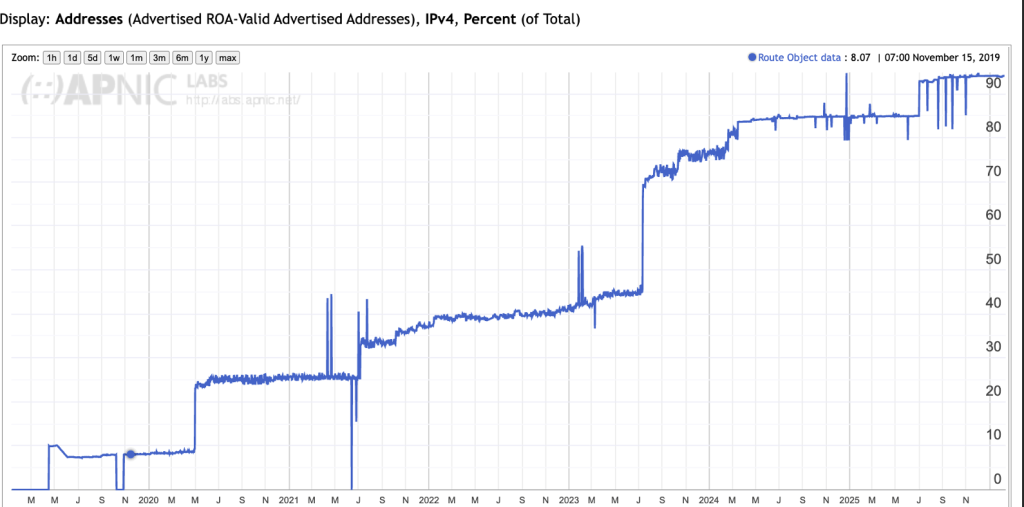

In Chile, for example, 85% of all advertised prefixes have associated ROAs, yet few service providers drop prefixes that are ROA-invalid (Figures 5a and 5b).
It seems strange to orchestrate a large-scale, economy-wide effort to generate these routing security credentials, yet not deploy the router configuration that would enforce Route Origin Validation (ROV) using these credentials. One without the other is a wasted effort!
Perhaps the most frustrating part of all of this is that, without any effort to protect the integrity of the AS-PATH, a malicious routing attack can be mounted that preserves routing origination and is undetectable by ROAs.
There is some hope that the long-awaited Autonomous System Provider Authorization (ASPA) construct will play a vital role here, but it’s hard to be optimistic given that ASPA combines partial network topology with partial routing policy, a design choice I consider broken. If there is a perception that ROAs are challenging to manage, then the somewhat odd mix of partial topology and policy that is described in an ASPA object will challenge a far larger set of network operators.
Now, what we have built in the RPKI routing security framework is a rather complex and ornate artefact that, at best can react to a subclass of route leaks, and does little to protect the routing infrastructure against deliberate efforts to subvert it. I’m somewhat resigned to the conclusion that it may be many years before we are ready to tackle this subject again, and try to craft some improvements to the routing security landscape, if at all. It’s perhaps just as well that, in today’s last mile data centre-to-consumer Internet, routing — and security of routing — just does not matter anymore!
Slides: Removing Barriers to RPKI Adoption, Cecilia Testart, Georgia Institute of Technology
BMP
While on the topic of routing, it’s interesting that BGP is one of the few protocols that has stimulated the development of its own dedicated reporting protocol, the BGP Monitoring Protocol (BMP). BMP’s relatively widespread adoption and use points to the value of such a tool. The protocol is still under active development in the IETF, particularly as it relates to increasing the breadth of visibility in the operation of the BGP control engine, and the input and output feeds to external peer BGP speakers.
BMP is a distinct improvement from the prior way of generating information about BGP. This was to use an ‘expect’ script to automate access to a BGP console, and generate commands that collected live BGP information back from the console. Or, you could set the BGP system into debug mode, and generate an ascii dump of all BGP transactions. Another common technique was to set up an external BGP peer relationship, and record all BGP messages, inferring the behaviour of the BGP system from these messages. BMP can directly expose this information without the need to perform indirect inference.

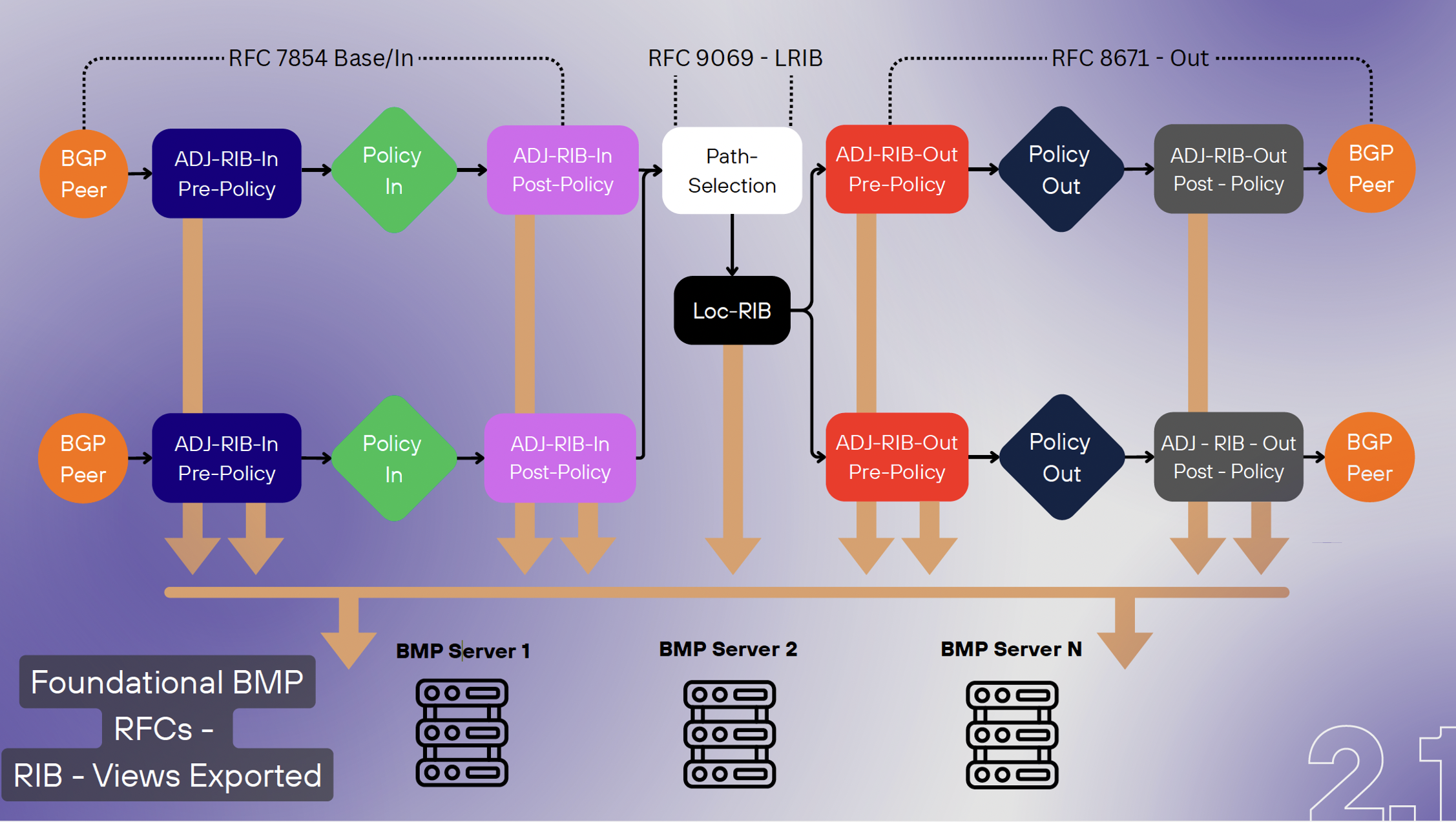

BMP exports a BGP speaker’s control state with an associated metadata stream that provides a commentary on the local changes to the control plane of the BGP system, enabling data aggregation and centralized data collection tasks. BMP functions are aligned to the generic internal structure of a BGP engine, as shown in Figure 6.
There is further work on BMP in the IETF to define Type Length Vector (TLV) codes that allow BMP to be extended to support more data types. There is now the capability to add BGP best path decision outcomes to mark a prefix and path with the status and reason. BMP’s time handling has also improved, to mark when a BGP state change triggered the event, and the time the BMP message was exported from the router.
There is also work on defining BMP over QUIC, which will be able to leverage QUIC support of multiple streams, and its built-in TLS support. There is also work in defining BMP for monitoring RPKI.
Slides: Shaping the Future of BGP Observability: BMP Evolution at IETF, Narasimha Prasad S, Cisco
Geofeeds
In the Internet of the 1980’s, a computer was usually anchored to the floor of a dedicated computer room. Its location was fixed, as was the IP address it used. At the time, its location was of little interest. Over the decades, end devices shrank and became mobile, with changing IP addresses. Many devices now have highly accurate location capabilities (as any navigation app user can attest), but this is not used for remote probing for the device’s location. We use the device’s IP address as a proxy for the device’s location.
This is stupid.
These days devices are address-agile. The scope of locality ranges from a highly specific to an uncertainty range of the entire earth. For example, some aircraft in-flight Wi-Fi services use a fixed address for the duration of the flight, so there is absolutely no notion of a fixed location for the addresses used by these services.
Deriving a guessed location using IP address has three benefits that have made it attractive:
- It’s really, really cheap.
- It does not require user permission of any form.
- It can be performed remotely without the user’s awareness.
Little wonder that the digital rights industry has taken to IP geolocation in a big way, despite the clear challenges with accuracy, and the more insidious issues of personal privacy and informed consent when guessing a user’s location.
The early location maps were extremely cheap and extremely inaccurate. The common sources were the address registries operated by the RIRs, where the use of a two-letter country code in the registry was taken as an acceptable proxy for location.
The content industry came to rely on this tool, despite its obvious issues, simply because of the lack of an alternative. The misattribution of location manifested itself in many ways: The weather app displayed the weather for an entirely different location, the automated local language setting was totally absurd, you could not access a movie, or access the right emergency service.
So, we started to improve on the way an IP address location database was populated, using a common template for describing the location of an IP address (RFC 8805). The assumption was that you, or likelier your ISP, would maintain this location record, and the IP-to-location mapping services to provide a ‘better’ location. Of course, you can’t really tell if the location record publisher is trying to be helpful or deliberately deceptive in generating such a location record. So, we use RFC 9632 to use the RPKI to sign these records. They may still be deceptively false, but you can only lie about your own addresses! It would not be 2026 unless we use AI to generate these location records for us! Because, as we all know, AI is infallible!
There are a few geolocation provider services out there, and most use a model of aggregating these geolocation records, combining them with a core of RIR data, and providing an IP-to-location service. Some are free, some are subscription services. Depending on the level of location specificity you are after, such services may be wildly incorrect, or just occasionally incorrect.
Some geofeed record publishers just have no interest in disclosing their true location and will publish misleading records for that reason. Some geolocation providers use ping and traceroute in an effort to place bounds of probability on an assertion of location, and there are other geofeed validation and geofeed aggregation websites.
Using IP addresses to establish a device’s location is a poor method. It can be coarse in terms of locational precision, its often gamed, and in many cases, the information is completely unverifiable. On the other hand, its typically cheap and does not need explicit informed consent on the part of the end user. We end up using IP-based geolocation far more than perhaps we should.
Slides:
- High-quality IP Geofeeds using AI Coding Assistants and MCP, Sid Mathur, Fastah
- IP Geofeeds: Trust, Accuracy, and Abuse, Calvin Ardi, IPinfo
Stuck routes
BGP is a deliberately terse protocol. Once a peer has been informed of the reachability of an address prefix, it would not be informed again unless the reachability changed, or the BGP session was reset. If a BGP engine loses an update, either by failing to correctly process an address prefix advertisement or a withdrawal, then the normal protocol action will not necessarily flag and repair such a situation.
From time to time, someone performs a detailed examination of the routing tables in a router carrying a complete routing table. They may observe that the routing table is carrying a Forwarding Information Base (FIB) entry that has been previously withdrawn by the BGP protocol. Or that it is not carrying a FIB entry even though it has been advised of in an update. Such anomalies have been part of BGP since such detailed examinations first took place more than 30 years ago. They have been various termed ‘ghost routes’ or ‘stuck routes’. Such detailed examinations are challenging, and they occur infrequently. It is an open question to ask how many such stuck routes exist in today’s routing table. Also, there are related questions as to how and where such stuck routes occur.
One approach to investigate stuck routes is to continually advertise and withdraw a small set of prefixes on a predetermined schedule. If a network is carrying a route that is not aligned with the schedule, then it’s likely that this route has become ‘stuck’.
We can take it a bit further by using a set of addresses, and regularly cycling them. If you use IPv6, there are enough bits to encode the time of the announcement of the prefix in the prefix itself. There are theories about stuck routes that relate to a stuck TCP session.
It was noted there were cases with only 5% of a Tier 1’s downstreams seeing a route while it was in fact stuck there. The use of route reflector update groups or confederations or zones increase the complexity of detection, and sometimes it’s difficult to find the root cause even within an AS!
Slides: The BGP Clock and the BGP Observatory: Hunting Stuck Routes, Kemal Sanjta, Cisco ThousandEyes
NANOG 96
The agenda for NANOG 96 includes pointers to all sessions from this meeting. In the near future the videos of these sessions will be posted to NANOG’s YouTube channel.
