The Australian Network Operators’ Group, AusNOG, just held its 19th meeting. Rather than simply relating the content of the presentations, I’d like to take a few presentations and place them into a broader context to show how such topics fit today’s networked environment.
Network operations and data centres
Perhaps unsurprisingly for a network operators’ meeting, network management and operations have been a constant topic of presentations and discussions. From a suitably abstract perspective, packet-switched networks are simply a collection of switch engines and transmission elements. The ability to pull data from the processing elements that control the switching function has created endless possibilities.
Upon reviewing the history of this area, we began with a simple model where the network’s switching systems had consoles, and network operators accessed the units to perform both configuration and data extraction using console commands.
A note on ‘routers’
The Internet tends to call these ‘routers’, although the distinction between ‘routing’ and ‘switching’ is pretty blurred these days. It may be a somewhat artificial distinction between the Institute of Electrical and Electronics Engineers (IEEE), the standards body responsible for the switching function, and the Internet Engineering Task Force (IETF), the body responsible for the routing function.
The historical definition of the distinction was based on the ISO 7-layer conceptual model of network functionality, where ‘switches’ operated on the media layer (MAC addresses) and ‘routers’ operated at the network layer (IP addresses).
There are likely more than a few network management systems in use today that operate in the same manner, still using expect scripts to perform these functions of network monitoring and control using scripted interaction with the network element’s consoles.
The Simple Network Management Protocol (SNMP) model was an early entrant into the network management suite of tools that broke away from the quirks of command-line languages. SNMP could be considered a remote memory access protocol, where each processing element could write data to labelled memory locations, which could be read by a remote party via SNMP fetches. The SNMP protocol also allowed for remote writing to enable configuration operations. It’s a very simple model, was widely adopted, and continues to enjoy widespread use, despite a primitive security framework and a limited repertoire of functionality.
There have been numerous efforts to improve on SNMP. There is Netconf with YANG, which appears largely to be a shuffling of the data modelling language from ASN.1 to Extensible Markup Language (XML), and not an awful lot else. There has also been a change in the tooling models, moving from individual tasks to orchestration of large pools of devices, with tools such as Ansible, Napalm and Salt. However, there are still a few invariants in the network monitoring toolbox, and these include the venerable first response go-to tools of ping, traceroute, and a collection of convenient Border Gateway Protocol (BGP) Looking Glasses.
We’ve also moved to a different control paradigm, from a dedicated network management console that queried a set of managed devices to a tighter level of integration. Tighter integration is provided by container-based toolkits that place the monitoring and diagnostic tools into the routers directly. Rather than rely on vendor-provided diagnostic capabilities, this programmable approach of loading custom images allows the network operator to code their own diagnostics and load these tools into the routers within the network. We no longer have to deploy a small computer beside every router to collect data as to the view of the network from the perspective of the adjacent router. We can gain this perspective directly from the router itself.
The story of monitoring systems is like safety regulations, in that their incremental revisions are written using the blood of prior victims!
In network management, we tend to be reactive in what we develop and how we approach the task. But such an incremental approach to the task runs the risk of rampant complexity bloat as we simply add more and more incremental fixes to a common substrate. Collecting megabytes of network device status information each and every second is quite a realistic scenario today. However, the question is: Who has the time and skills to shovel through all this data, rephrase it as a relevant and timely indicator of current network anomalies, and use the data to identify options for how to rectify them? The current fashionable answer is: ‘This is surely a task for AI!’
One of the dominant factors in the network operations and management domain is the pressure of scale. Amazon AWS provides a perspective from one of the largest hyperscalers. Scaling for Amazon is an unrelenting and unique challenge, with an 80% annual increase in network capacity. Such growth rates are slightly higher than the growth in silicon capability. Even if an operator were willing to regularly swap out their silicon capability (at considerable cost), they would still find it challenging to stay ahead of this magnitude of scaling pressure.
How should a service provider respond to such unrelenting scaling pressures? For Amazon, the answer is a combination of ‘stripped simplicity’ and automation! They are claiming that 96% of network ‘events’ in their network are remediated or mitigated without any human operator intervention at all. That is a pretty intense level of automated response.
This is accompanied by an intense focus on the absence of external dependencies shared across all the hyperscalers. They take the mantra of ‘owning their own destinies’ very seriously. This and the desire to automate everything are the key factors behind their capability to manage networks with over 1M devices.
The trend over many years among routing and switching equipment vendors was to use ever larger units of equipment with ever larger port populations. These large units were loaded with a continually expanding software base to permit this equipment to be used in a broader range of operational contexts. The old time-division phone switches used a few million lines of code. Today’s routers have a few hundred million lines of code! All this adds complexity to operating these devices, increases the risks of failure and increases the difficulty of fault isolation and rectification.
We are seeing a reaction to the trend toward larger and more complex devices, and there is now a level of interest in simple single-chip switches. Such single-chip devices have fewer ports, less memory and perform fewer functions in total, but have the advantage that the overall switch architecture is simpler.
With up to 64 MB of high-speed memory on the same ASIC chip as the switch fabric, such single-chip switches can also provide improved performance at a lower price point. They have a lower port population per switch, so there are potentially many more such switches, but with their more modest size and power requirements, they can be built into very dense switching frames with the additional factor of redundant switch capacity.
A typical building block is a 12.8 Tbps 1xRU 32x400G ports switch, all with a single chip and single control plane, with 64 MB of high-speed local memory. 32 of these devices are assembled into a 100 Tbps rack, with a three-tier Clos switching fabric, and 42 of these racks get us to the petabit capacity!
The automation approach is to react to a known signal from a switch device by taking the device into an out-of-service condition and letting the redundant framework take care of the associated traffic movement. These networks are designed and constructed around an automated network from the start, which is distinct from the more conventional approach of retrofitting automation of network operations to an existing network. The standard automated response is to pull the unit out of service, remediate the device and roll it back into service, all in a fully automated manner.
It should also be noted that this approach of using a custom-designed switch chip and its own firmware bypasses the typical router function bloat — and related complexity issues — found in today’s routers. The functions of these units can be tightly constrained, and the conditions that generate a management alarm are similarly constrained. This approach facilitates the automation of the environment at these truly massive scales.
Finally, on the topic of network management and operations for extremely large high-speed data centres, Nokia presented on AI data centre design and their take on Ultra Ethernet (UE). These special-purpose facilities can be seen as an amalgam of several discrete network applications, namely:
- Linking GPUs to memory (RDMA)
- Storage access
- In-band communication
- Out-of-band control.
The most demanding of these is the GPU memory access application. This is based on Remote Direct Memory Access Over Converged Ethernet v2 (RoCEv2), a networking protocol that enables high-throughput, low-latency data transfers over Ethernet by encapsulating Infiniband transport packets within UDP/IPv4 or UDP/IPv6 packets.
RoCEv2’s Layer 3 operation allows it to be routed across subnets, making it suitable for large-scale data centres. UE also requires a lossless Ethernet network, which is achieved through Priority Flow Control (PFC) and Explicit Congestion Notification (ECN), to maintain its performance.
The geopolitics of submarine cables
Funding a submarine cable in the telco era was a process of managed controlled release. Submarine cables were proposed by groups of telco operators, who would effectively become shareholders of a dedicated corporate vehicle that would oversee and finance the construction and operation of the submarine cable. The route of the cable reflected the majority of interests that were represented in that cable company. The cable could be a single point-to-point cable system, a segmented system that breaks out capacity (branches) at various waypoints along the cable path, or a multi-drop cable system that supports multiple point-to-point services.
The telco model of cable operation was driven largely by the mismatch between supply and demand in the telephone world. The growth in demand for capacity was largely based on factors of growth in population, growth in various forms of bilateral trade and changes in the relative affordability of such services. These growth models are not intrinsically highly elastic. The supply model was based on the observation that the cost of the cable system had a substantial fixed cost component and a far lower variable cost based on cable capacity. The most cost-effective approach was to build the largest capacity cable system that current transmission technologies could support.
The risk here is that of entering cycles of boom and bust. When a new cable system is constructed, placing the entire capacity inventory of the cable into the market in a single step would swamp the market and cause a price slump. Equally, small increments in demand within a highly committed capacity market would be insufficient to provide a sustainable financial case for a new cable system. So, new demands would be forced to compete against existing use models, creating scarcity rentals and price escalation.
The cable consortium model was intended to smooth out this mismatch between the supply and demand models. The cable company would construct a high-capacity system, but hold onto this asset and release increments of capacity in response to demand, while attempting to preserve the unit price of purchased capacity. Individual telephone companies would purchase 15 to 30-year leases of cable capacity (termed an ‘Indefeasible Right of Use’, or IRU), which would provide a defined capacity from the common cable, and also commit the IRU holder to paying for some proportion of the cable’s operating cost. The cable company would initially be operated with a high level of debt, but as demand picked up over time, the expectation was that this debt would be paid back through IRU purchases, and the company would then shift into generating profit for its owners once it had achieved the break-even level of IRU purchases.
In the telephone world, these capacity purchases would normally be made on a ‘half circuit’ model. Each IRU half circuit purchase would need to be matched with another IRU half circuit, such that any full circuit IRU was in effect jointly and equally owned by the two IRU holders. This framework of cable ownership and operation did not survive the onslaught of Internet-based capacity demand. Since the 1990s, the Internet has been growing along the lines of a demand-pull model of unprecedented proportions. Over the past three decades, the aggregate levels of demand for underlying services have scaled up by up to eleven orders of magnitude.
Today’s Internet is larger by a factor of a hundred billion or more than the networks of the early 1990s. This rapid increase in demand exposed shortfalls in the existing supply arrangements, and the Internet’s major infrastructure actors have addressed these issues by working around them. Around 2010, the brokered half circuit model of submarine cable provisioning was rapidly replaced with models of ‘fully owned’ capacity, where a single entity purchased both half circuits in a single IRU transaction, and even with models of ‘fully owned cables’ where the cable company itself was fully owned by a single entity.
It was not coincidental that this coincided with the rise of the hyperscalers, and these days Alphabet, Meta, AWS and Microsoft account for 70% of global cable usage, and this growth has happened in the last decade. Their model is one that integrates transmission, data centres and service and content delivery. These days, only half of the announced projects are completed, yet 100% of the hyperscaler projects have been commissioned to operational status. The submarine cable map looks denser every year.
In terms of geopolitics, national jurisdictions do not stop at the low tide mark of a territory, but extend out into the sea and the sea floor. The 1982 United Nations Convention on the Law of the Sea defined sovereign territorial waters as a 12-mile zone extending out from an economy’s coast. Every coastal economy has exclusive rights to the oil, gas, and other resources in the seabed up to 200 nautical miles from shore or to the outer edge of the continental margin, whichever is the further, subject to an overall limit of 350 nautical miles (650 km) from the coast or 100 nautical miles (185 km) beyond the 2,500-metre isobath (a line connecting equal points of water depth).
What does this mean for submarine cables? The point where the cable enters territorial waters requires the permission of the economy. It also implies that any cable construction and repair operations carried out in these sovereign areas also require the permission of the economy that has exclusive rights to the sea and seafloor.
Where the seabed lies within contested areas, and the South China Sea is a current example of this situation, it’s more complex. Cables are expensive assets and are easily disrupted, and the preferred option is to avoid laying cables within contested areas. However, there is a further factor here, which concerns the simmering tensions between the United States and China.
A Reuters news item in late 2020 reported that the United States had warned Pacific Island nations about the security threats posed by Huawei Marine’s ‘cut-price bid’ to construct the East Micronesia Cable System, echoing earlier concerns voiced by Nauru on the potential roles of Huawei Marine. The report mentioned the requirement placed on all Chinese firms to cooperate with China’s intelligence and security services, and the potential implications this had for regional security in this part of the Pacific. This was picked up by the United States, which voiced a similar warning on the potential security threats posed by the Huawei Marine bid to construct this cable.
By mid-2021, the entire project had reached a stalemate, and the project was ditched. The Hong Kong-Guam (HK-G) cable system was originally proposed in 2012 as a 3,700 KM undersea cable connecting Hong Kong and Guam with four fibre pairs, with a design capacity of 48 Tbps. The application to the FCC to land the cable in Guam was withdrawn in November 2020.
The Pacific Light Cable Network was a partnership between Alphabet, Meta and the Chinese Dr Peng Group, proposed to use 12,800 km of fibre and an estimated cable capacity of 120 Tbps, making it the highest-capacity trans-Pacific route at the time (2018), and the first direct Los Angeles to Hong Kong connection. The cable was completed in 2018, but a US Justice Department committee blocked approval of the Hong Kong connection on the US side, citing “Hong Kong’s sweeping national security law and Beijing’s destruction of the city’s high degree of autonomy as a cause for concern, noting that the cable’s Hong Kong landing station could expose US communications traffic to collection by the PRC.”
In early 2022, the US FCC approved a license for a modified cable system that activated the fibre pairs between Los Angeles and Balen in the Philippines and Toucheng in Taiwan. The other four fibre pairs are unlit under the terms of this FCC approval.
More recently, the incidence of cable outages appears to have increased, with cable outages in the Red Sea, the Baltic Sea and the East China Sea that are potentially indicative of deliberate actions by some parties to disrupt communications. There is little that a cable operator can do to protect a submarine cable from such deliberate acts, particularly in shallower waters. In cases where it is feasible, multiple diverse cable routes are used to try to minimize the disruption caused by a single event.
BGP topics
Routing registries have played a role in the inter-domain routing system since the early days of the Internet. These registries are used as a source of routing intention for a network, listing the prefixes that a network intends to originate and the intended policies that are associated with such originating announcements. A routing registry can also be used to list the Autonomous Systems (ASes) of adjacent networks and the policy of that adjacency (such as ‘customer’, or ‘peer’, for example).
The registry allows other network operators to generate filters that can be applied to BGP peering sessions. These filters allow a network operator to only admit those routes that correspond to the network operator’s route admission policy. They are also extremely useful in limiting the propagation of route leaks. Routing registries are a useful asset in the management of the inter-domain routing space.
However, these registries are far from perfect. Very, very far! There are many route registries, and they contain differing information. Understanding which entry is the current ‘truth’ where similar entries differ in detail across several routing registries is not readily resolved.
Often, the problem is simple neglect, where current information is initially added to the registry, but subsequent changes are not recorded into the registry. However, it goes a little deeper than just inconsistent information. The issue is that routing registries are unauthenticated systems where it’s often possible for anyone to enter any information. How can a client be assured that the information that they are downloading from a registry and using to create routing filter lists in a production router is the ‘correct’ information? The simple answer is that they simply can’t be provided with any such assurance.
Such assurance is challenging. The entire Resource Public Key Infrastructure (RPKI) system and the associated framework of route origination authorities (ROAs) could be regarded as nothing more than a replacement for the route registry’s ‘route‘ object, which associates an address prefix with an originating Autonomous System Number (ASN), and then generates a filter list to match the collection of such authenticated objects.
Even then, the level of assurance in the RPKI framework is by no means complete. While the prefix holder has provided its authority via the use of the associated digital signature over the Route Origin Authorization (ROA) object, there is no similar assurance that the network referenced by the ASN is aware of this authority, let alone has provided any indication of its intent to generate such a route advertisement.
The other aspects of route registries, such as AS adjacency and inter-AS routing policies, have no counterpart in the RPKI, although work has been underway in the IETF on the Autonomous System Provider Authorization (ASPA) object. The ASPA object is an odd hybrid of a signed object that contains partial AS topology information and just one aspect of policy constraint. After 8 years of gestation in the IETF, there are no expectations of when (or even if) the IETF will be done with this particular draft!
As well as the inability to authenticate these route registry objects, there is also the issue of abuse of these fields. It’s hard to determine if this abuse is deliberate or unintentional, but the results are the same. In this case, the route registry construct is the ‘AS-SET’, which is a macro operator that associates a list of ASes with a name. The members of an AS-SET may be ASNs or other AS-SETs, and this recursive definition allows the size of the set of prefixes that may be originated to quickly balloon if not carefully defined.
As Doug Madory noted in his presentation to AusNOG on the topic of ‘The Scourge of Excessive AS-SETs‘, there are no inherent quality, integrity, or authenticity controls over the content of AS-SETs. There are no limits to the number of AS members or AS-SETs, or the depth of recursion that can be used. There is also no agreed-upon understanding of different use cases of AS-SETs. There are some pretty impressive examples, such as the AS Set ‘AS MTU’ which expands to 43,824 ASNs (of a total of 80,000 ASes announced in the BGP default-free routing tables. This macro expands to 1.3M lines of configuration to set up a filter list! It’s by no means unique, and evidently, 2.192M AS-SETs have expansions of 1,000 or more ASNs.
Any unsuspecting operator who uses route registry tools to generate configurations based on these AS-SETs may be in for an unwelcome surprise. These excessively large sets may break route configuration tools or generate broken configurations.
What should we do about it? I think it’s late in the day to propose radical changes to the way routing registries are managed and the model of data acquisition. Proposals that assume that such a change is feasible strike me as unrealistic.
As an alternative to performing radical changes to the mode of operation of route registries, we could work along the lines of increasing the collection of RPKI-signed objects. For example, signed prefix lists could be used as an analogy of the route object. Some form of AS propagation policy could be an RPKI analog of the abstraction of the import and export clauses of AS objects. Work in the IETF in the RPKI space is progressing quite slowly. So, even if this were the preferred path, there is no expectation that anything is going to happen here anytime soon!
Quantum cryptography
I am happy to say that I am one of the overwhelming majority when I claim that I have absolutely no clear understanding of quantum physics and the magical properties of quantum entanglement and superimposition. I’ve yet to hear a clear explanation of qubits, state superposition and entanglement, and state collapse under measurement or observation. But the industry’s hype machine is putting in the extra hours, and already we have ‘quantum 2.0’!
There is quantum networking and quantum computing, both of which are high-cost, high-profile flagship technology projects of the past decade or so. Large sums of money have been spent on various research projects, and the early implementations of quantum computers are already out there.
Among these projects, there are Google’s Willow, Microsoft’s Majorana and D-Wave’s Advantage-2, which are moving the progress indicator forward. But while the underlying physics of quantum mechanics is really impressive, the performance of these early quantum computers is definitely not so impressive. Finding the prime factors of 21 is now a quantum computable problem, but performing the same function on a 40-digit integer in under a second is still some time away.
So why are we talking about quantum computers today? The answer lies in the secrets we want to keep and the cryptography that protects such secrets. If the secret needs to be a secret for 20 years, we are not just assessing the difficulty of ‘cracking’ the cryptography using today’s computers. The feasibility of performing the same function 20 years from now is an interesting question.
In past years, this was a simple question, based on the scaling properties of improving the etching quality in large-scale integrated circuits on silicon wafers. The shorter the wavelength of the light source and the better the optics, the finer the detail that could be etched on the silicon chip.
The improvements in feature size on a chip followed a largely predictable model, called ‘Moore’s Law‘ after Intel’s co-founder Gordon Moore. He first observed this regular doubling of the number of transistors on each silicon chip every year (subsequently modified to every two years). The greater the gate count, the more capable the processing capability of the chip. A regular increase in the gate count implied a regular increase in the capability of the processor. After 20 years, the continued application of this doubling predicts a compute capability 512 times greater than the current capability.
The second salient factor concerns the nature of digital cryptography. The challenge is not to try to construct insoluble scenarios, but to construct scenarios that are impractical to compute using current computing technology. One such example is the task of computing the prime factors of a composite integer. So far, we know of no mathematical shortcuts to this problem, and we are left with just the Sieve of Eratosthenes as the generic approach to this task. If you take two very large prime numbers and multiply them together, then the task of calculating the original numbers is computationally infeasible.
Quantum computing holds the promise of improving the speed of some of these tasks. Shor’s algorithm, developed in 1994, is an algorithm for a quantum computer to find the prime factors of large composite integers. To ‘break’ the RSA-2048 cryptography in under 8 hours, it is estimated that we would require a quantum computer of 20M qubits. Today, we are looking at around 1,000 qubits as the current state of the art in quantum computing.
So, if you want to keep a secret encoded using RSA-2048 for, say, 20 years, then the biggest threat to this secret over this period is not the continued refinement of conventional processing capability with integrated circuits. The biggest threat to the continued integrity of RSA-2048 in the year 2045 is that by then, we will have constructed large-scale quantum computers that can perform this prime number factorization task in hours rather than centuries or millennia. The big question is: When is this likely to occur?

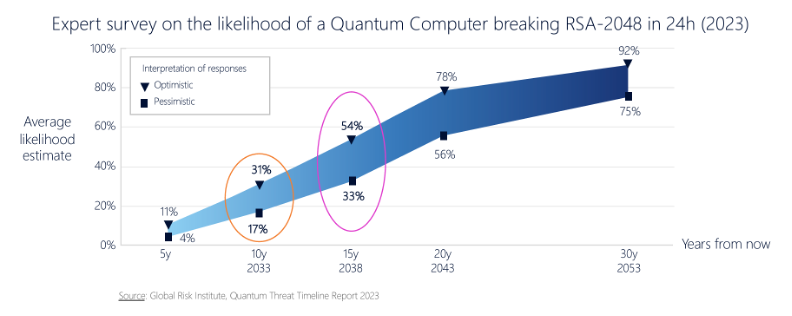

What we are after is the time when ciphertext that is encrypted using RSA and ECC algorithms is susceptible to being broken by quantum computers that meet the necessary scale and reliability parameters. A computer of such scale is termed a Cryptographically Relevant Quantum Computer (CRQC). When that may happen is literally anyone’s guess, but the more money that gets pumped into finding solutions to the engineering issues of quantum computers, the earlier that date will be. The year 2030 has been talked about, and it is not considered to be a completely unbelievable date, even though it’s well on the optimistic side (Figure 2).
This date of 2030 is well within a two-decade horizon for keeping a secret, so if you want to ensure that what you are encrypting today remains a secret for the next twenty years, then it is prudent to assume that quantum computers will be used to try and break this secret sometime within those twenty years. Even though capable quantum computers are yet to be built, we still need to consider the use of quantum-resistant cryptographic algorithms today in certain areas where long-held integrity of the encryption process is important.
The present danger lies in an attacker performing data capture now, in anticipation of being able to post-process it at a later date with a CRQC. There is even an acronym for this: Harvest Now, Decrypt Later (HNDL). The response is to use a new generation of cryptographic algorithms that are not susceptible to being broken by a CRQC engine. Easy to say but far harder to actually achieve. In the US, the National Institute of Standards and Technology (NIST) has been running a program on Post Quantum Cryptography (PQC) for years.
The challenge is that crypto algorithms are not provably secure, but can be considered to be secure until they are shown to be broken! The approach has been to publish candidate PQC algorithms and invite others to test them for potential vulnerability. The current state of this program is summarized on Wikipedia.
What applications require the integrity of long-held secrets?
I have seen several presentations in recent months on the topic of using Post Quantum Cryptographic (PQC) algorithms for DNSSEC, the security framework for the DNS. It’s challenging to conceive of a scenario where breaking the integrity of a DNSSEC private key would expose a long-held secret after 20 years. So no, there is no immediate need for PQC in the DNS.
What about Transport Layer Security (TLS)? TLS is used for both authentication and session encryption. It’s challenging to conceive an authentication task that requires 20 years of secrecy. However, the case for PQC in session encryption is far easier to make. In this case, there may well be communications that require secrecy for an extended period. In these cases, there is a need to provision TLS with PQC options.
On the whole, this is an easier outcome than contemplating PQC in the DNS. The larger key sizes in PQC present serious issues to UDP-based transport, as fragmentation is an ever-present reliability factor, while larger key sizes can be more readily accommodated in a streaming transport such as TCP or Quick UDP Internet Connections (QUIC).
And should a network operator use PQC for network-layer encryption? I can see the value in certain specialized scenarios, particularly in cases where radio links are used and the need for enduring secrecy of all communications carried over a network is vital. For the case of the public Internet, I do not see a convincing rationale.
Resources
The video records and slide packs from AusNOG 2025 will be available online soon.
